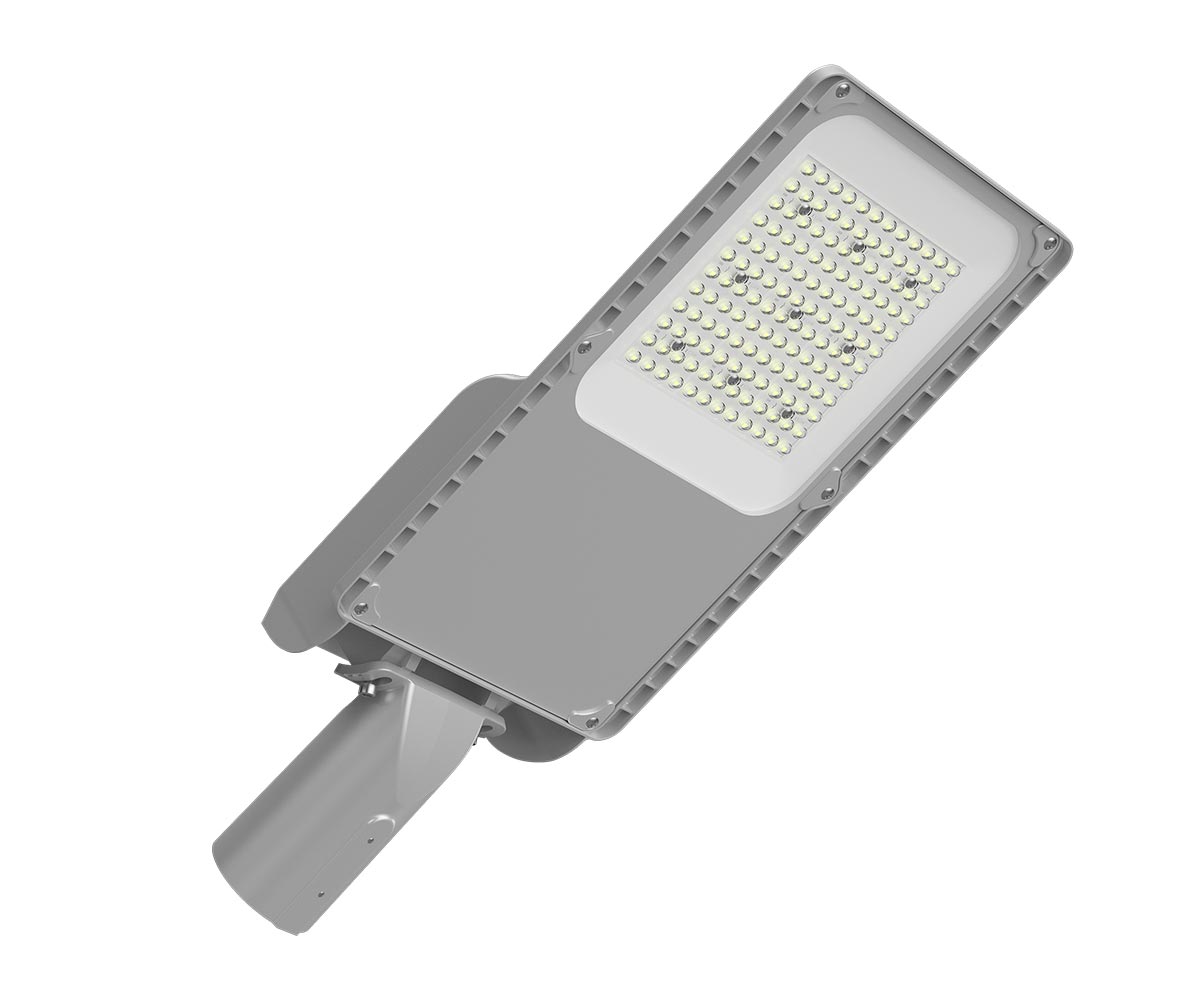

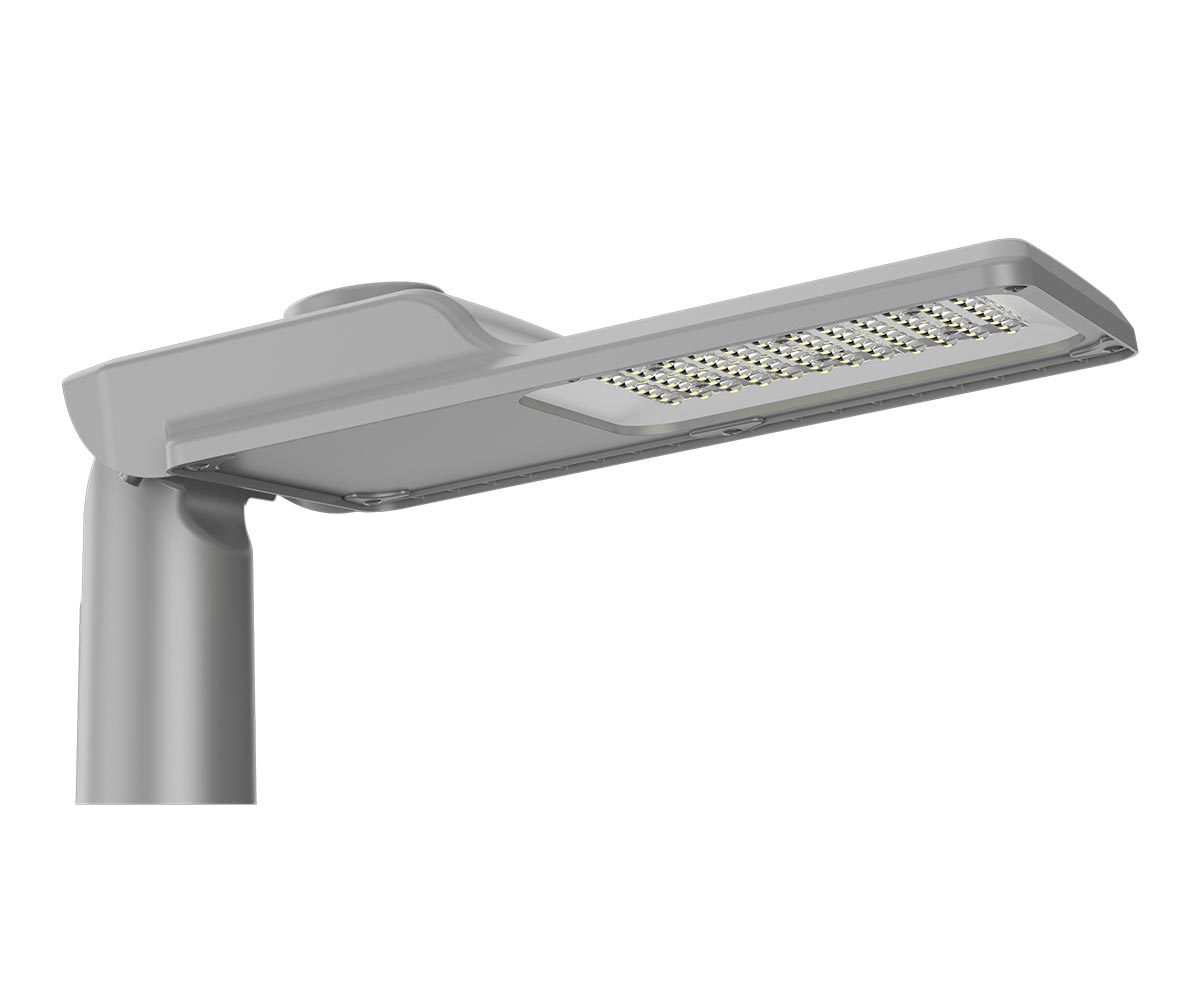

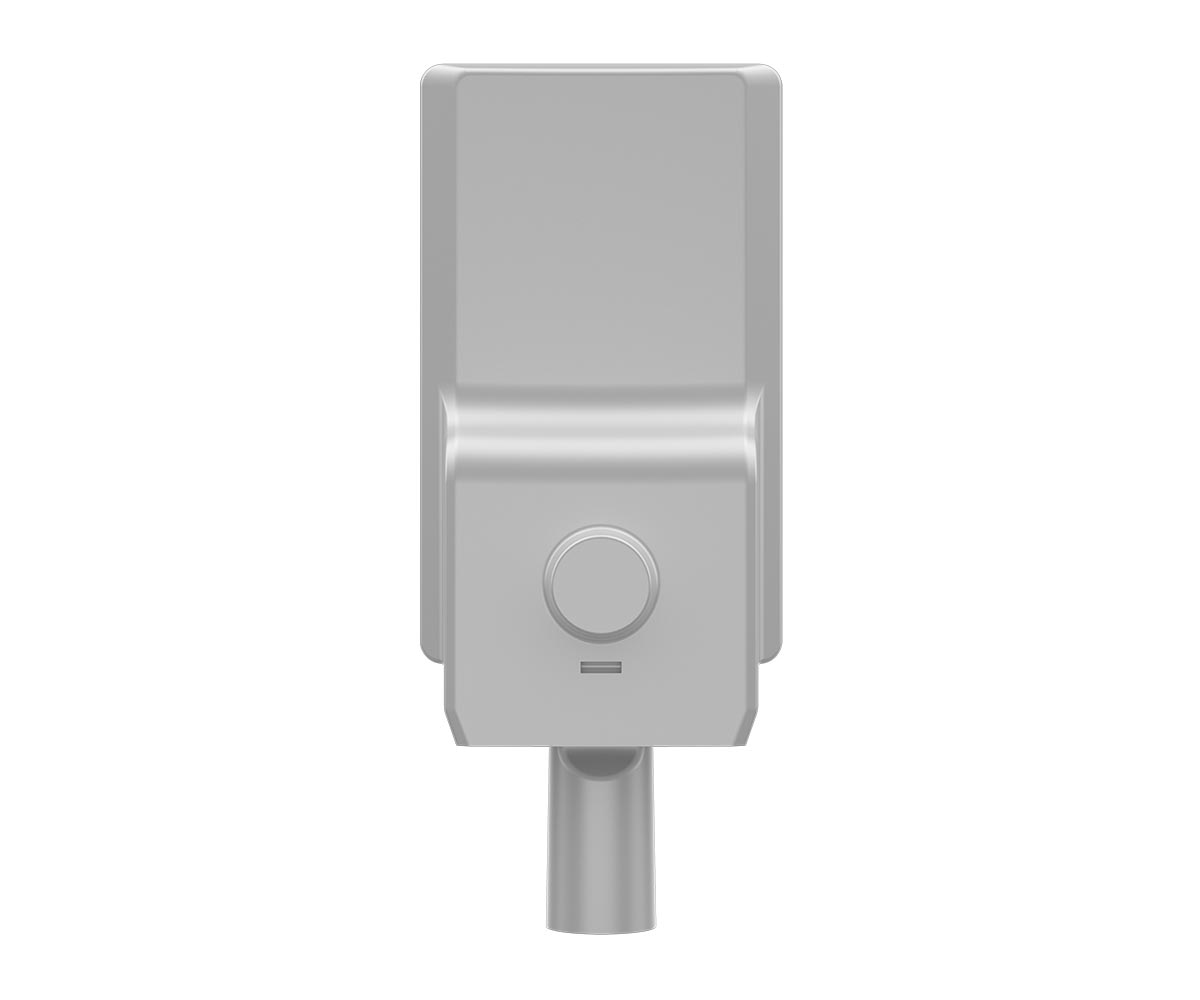

Strada UCS3

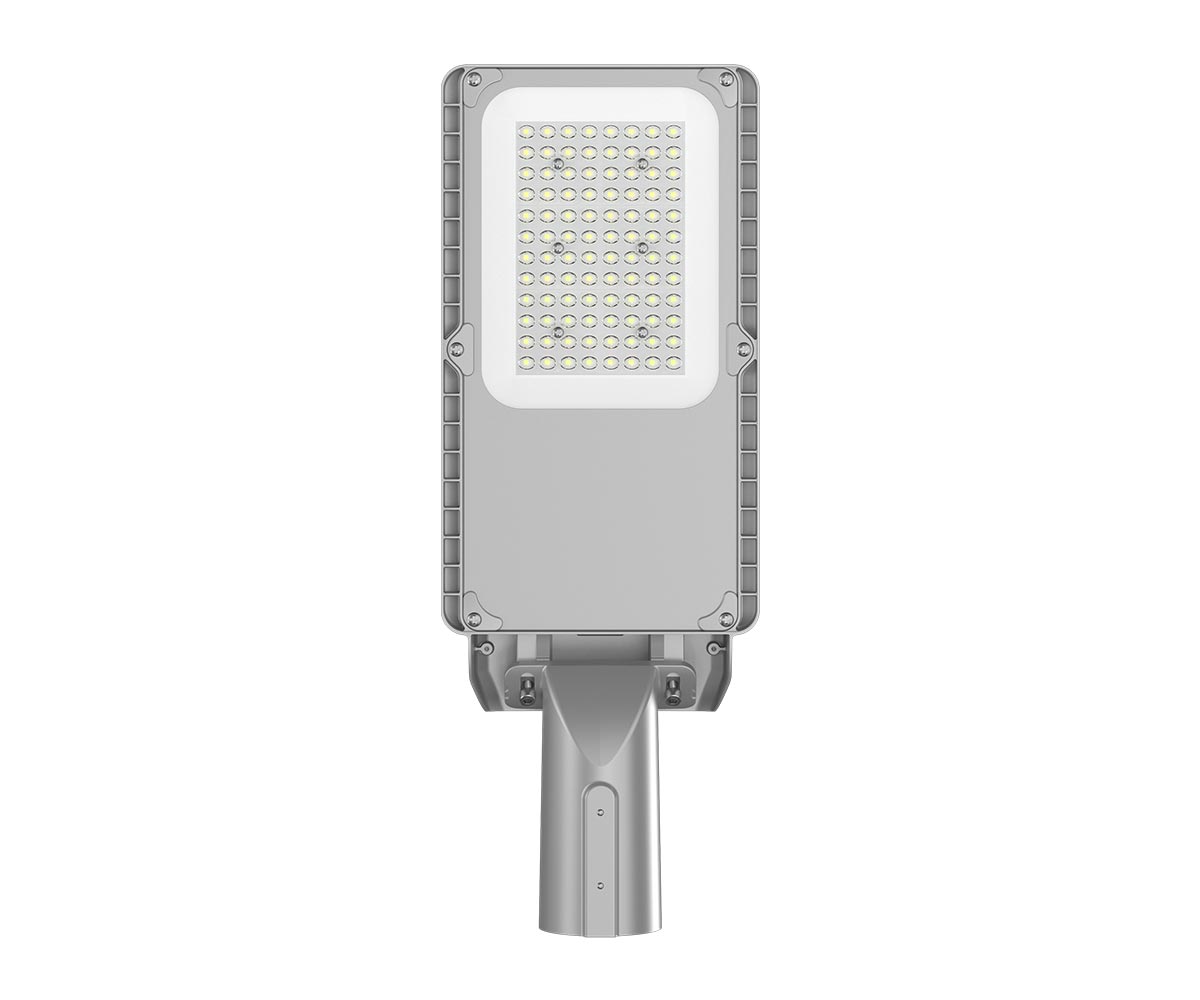

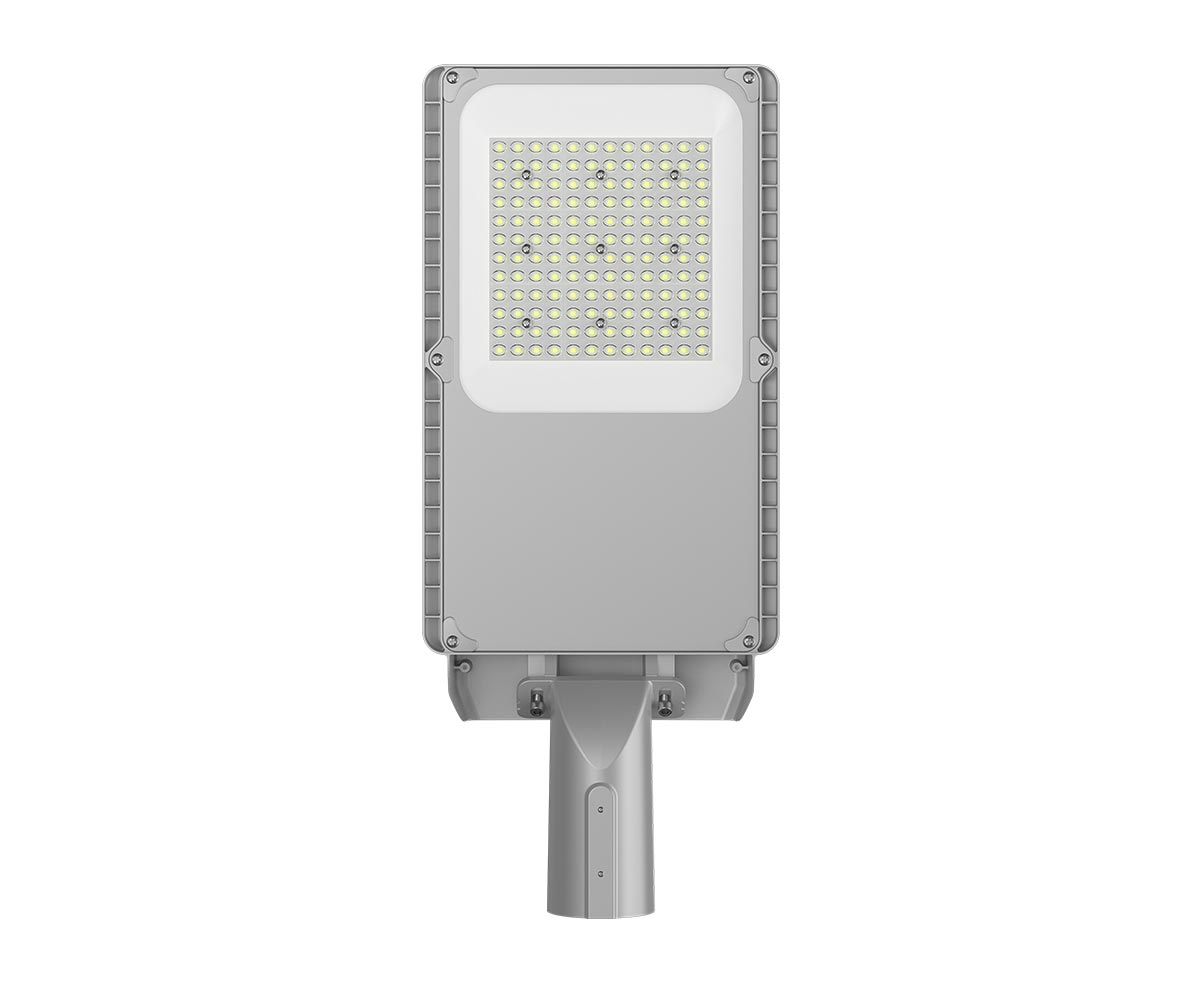

The UCS3 from Italtesla’s Strada series is a versatile LED street luminaire designed to meet the functional and economic needs of modern outdoor lighting infrastructure. Built with high-efficiency Philips LED chips and powered by Meanwell or Sosen drivers, the UCS3 achieves a luminous efficacy of over 160 lm/W, with initial luminous flux ranging from 6,400 to 32,000 lm across its power range (40W to 200W).
The UCS3 supports two adjustable power configurations—20W–50W and 40W–100W—via DIP switch, allowing flexibility in application and reducing inventory complexity. Optical distributions include TP II, TP III, TP IV, and TP V beam patterns, making it suitable for urban streets, secondary roads, and large public areas.

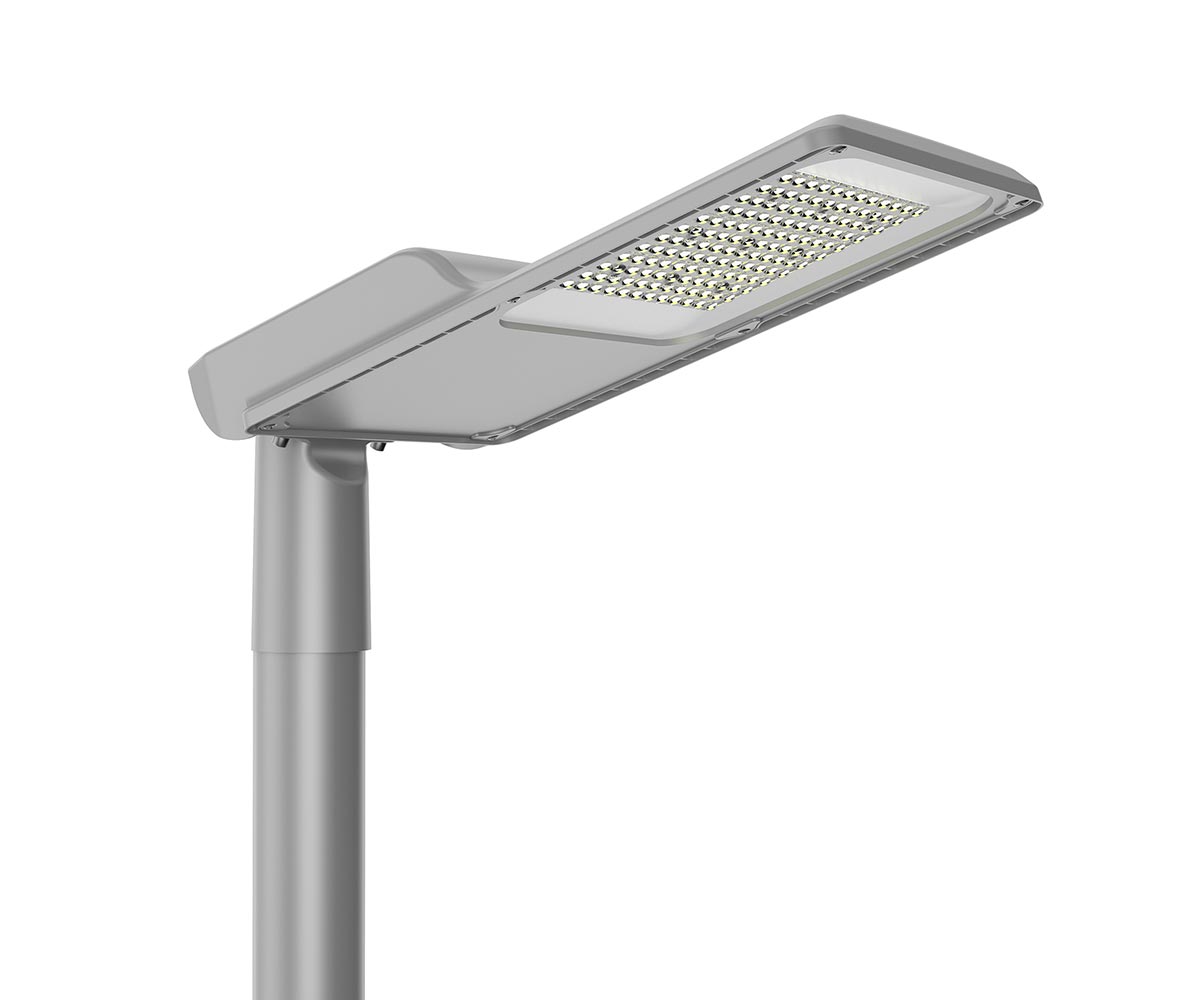

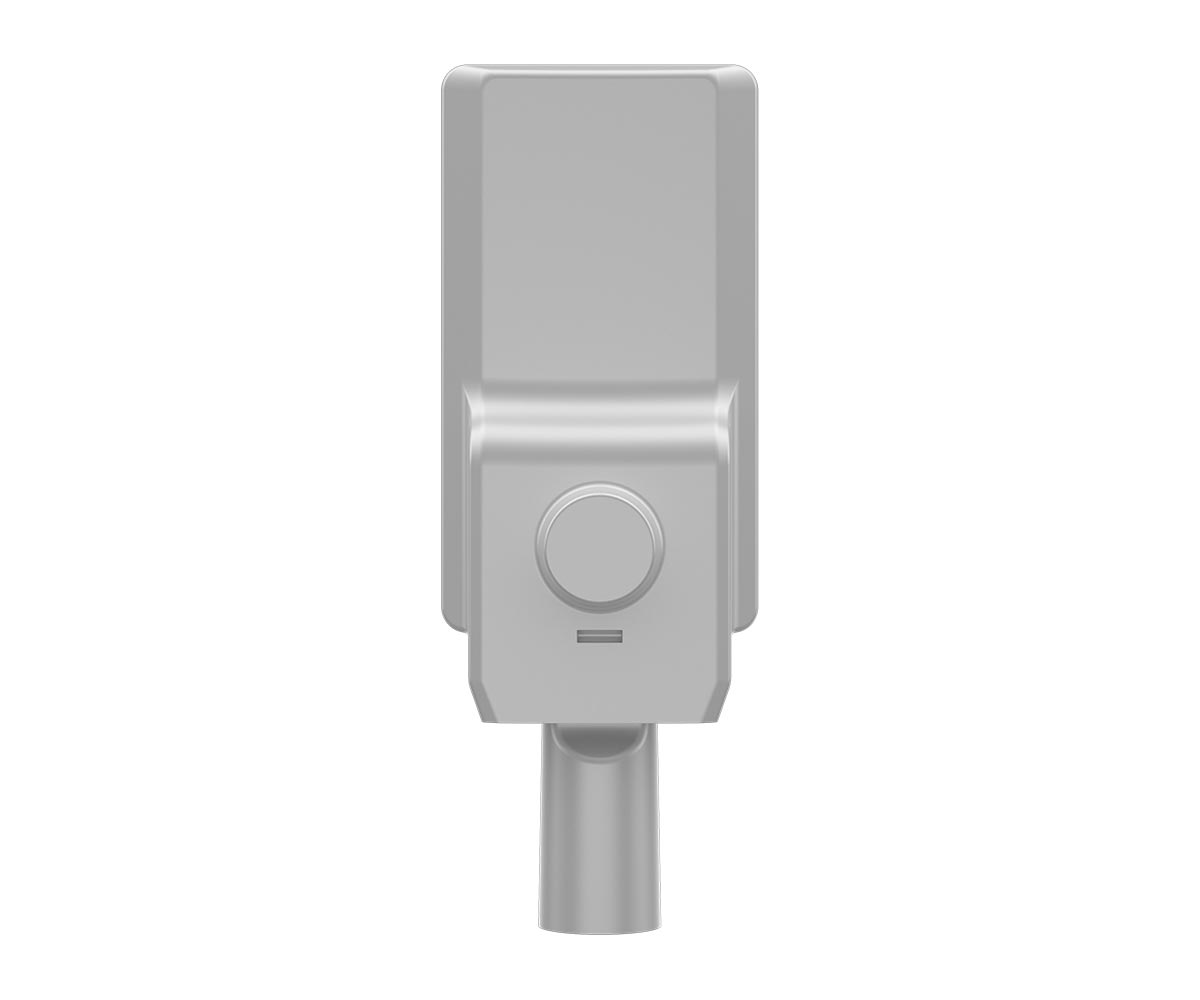

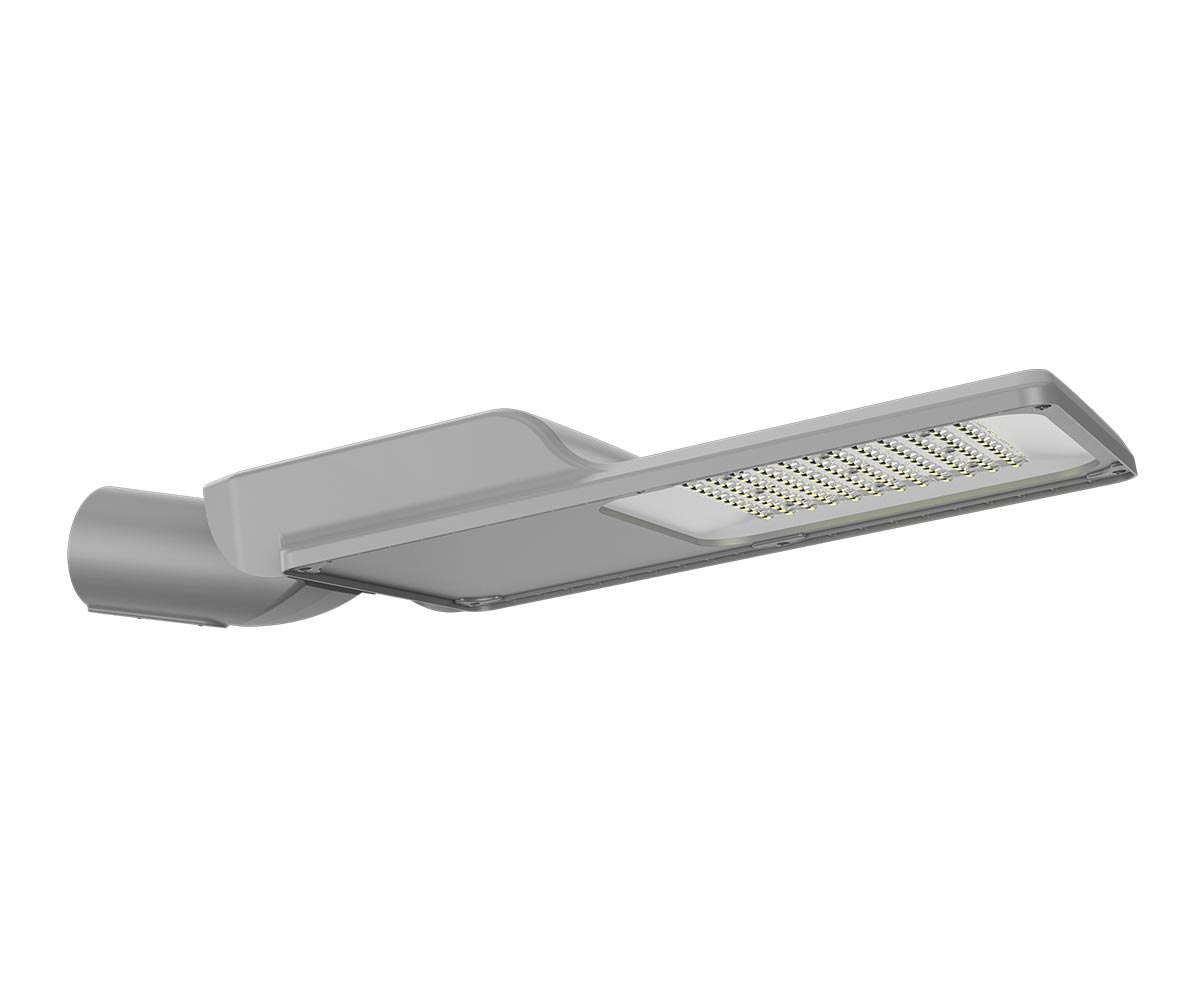

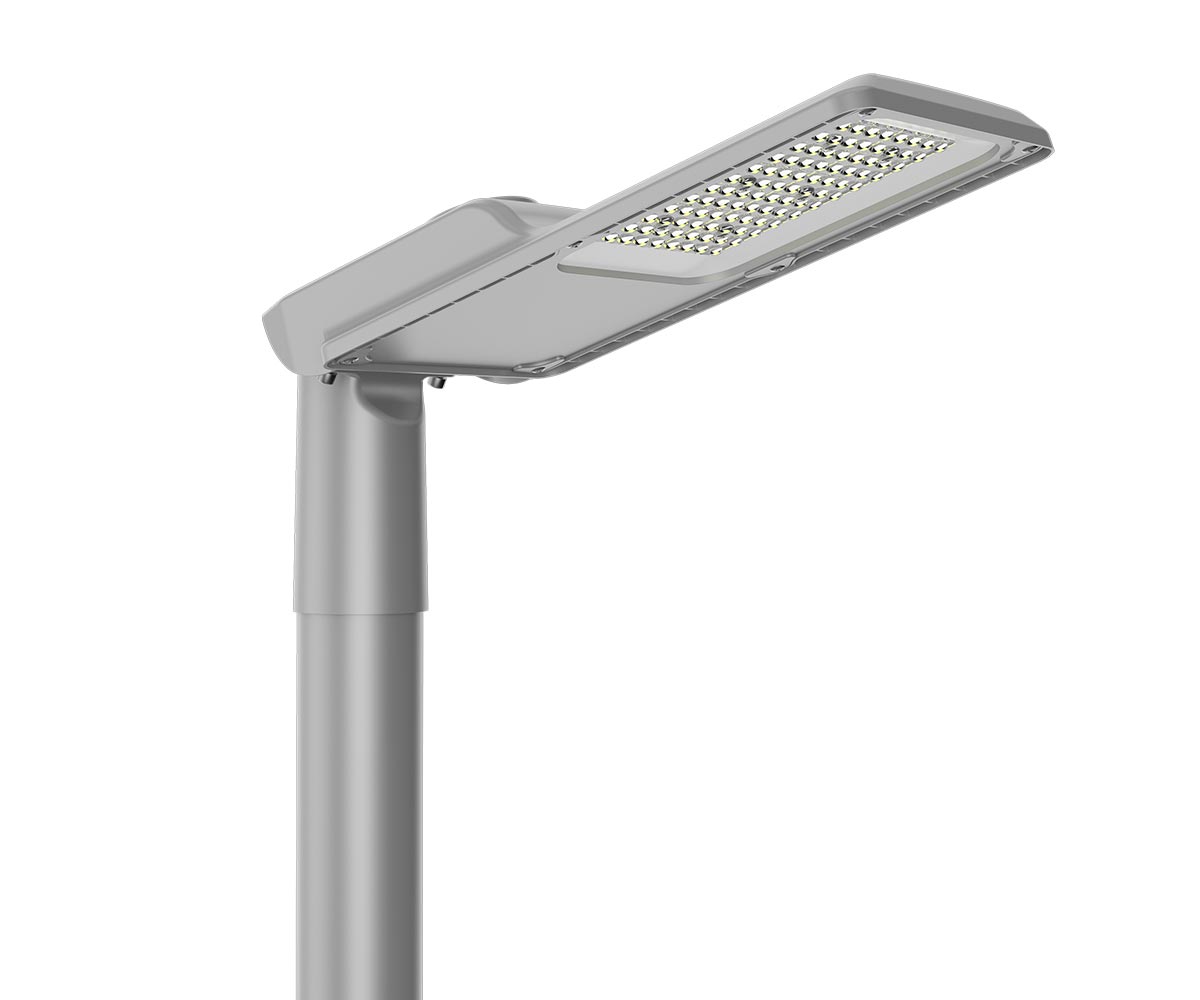

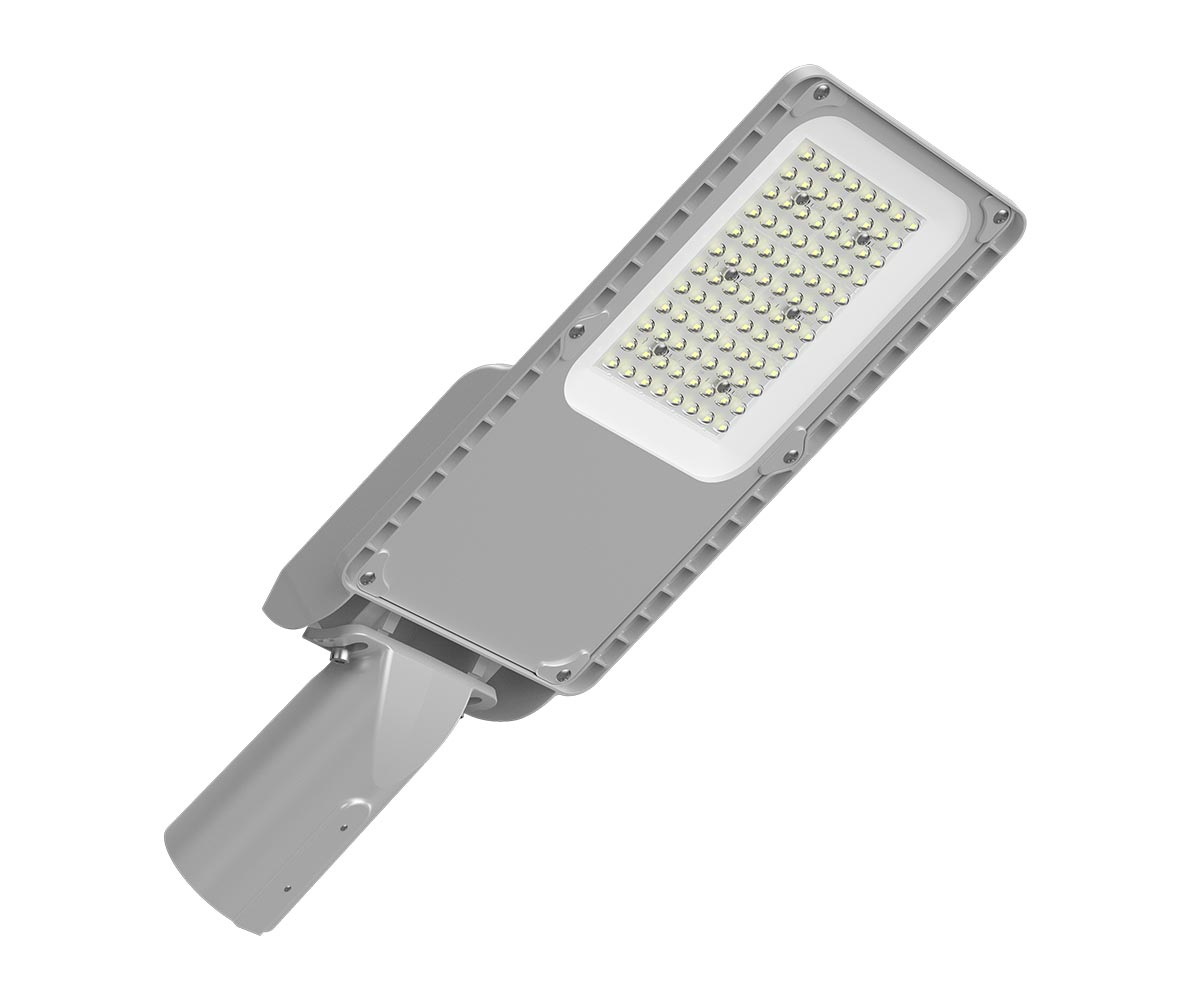

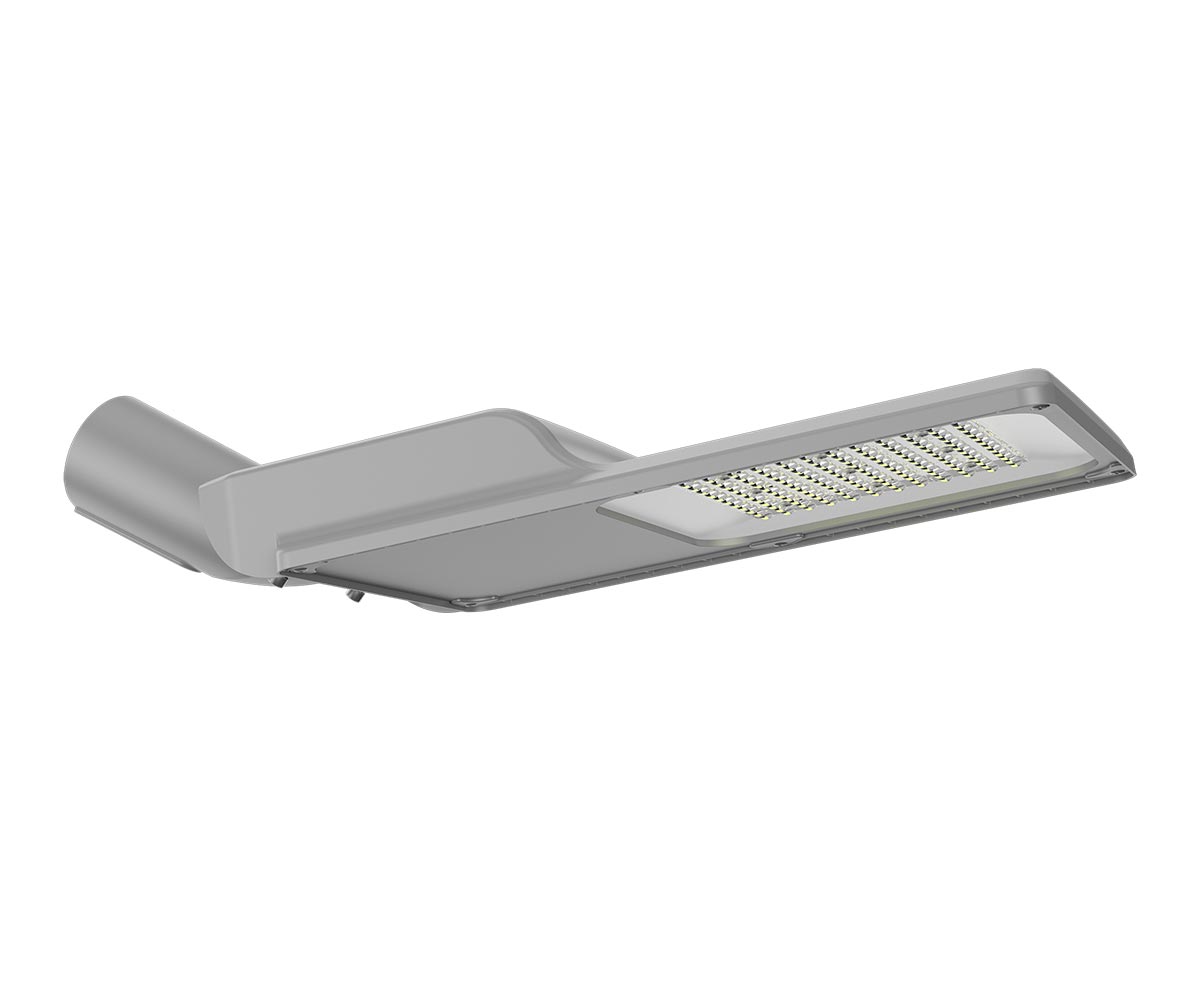

Constructed with a die-cast aluminum body, tempered glass cover, and PMMA lens, the fixture ensures thermal stability, UV resistance, and mechanical robustness (IP66, IK08). Vertical and horizontal mounting options are supported through a standard Φ60 mm interface, with a compact, maintenance-friendly design.
Rated for operation between -30°C and +50°C and with a service life exceeding 50,000 hours, the UCS3 is a practical, long-term lighting solution for municipalities, contractors, and infrastructure providers seeking efficiency, reliability, and configurability.
