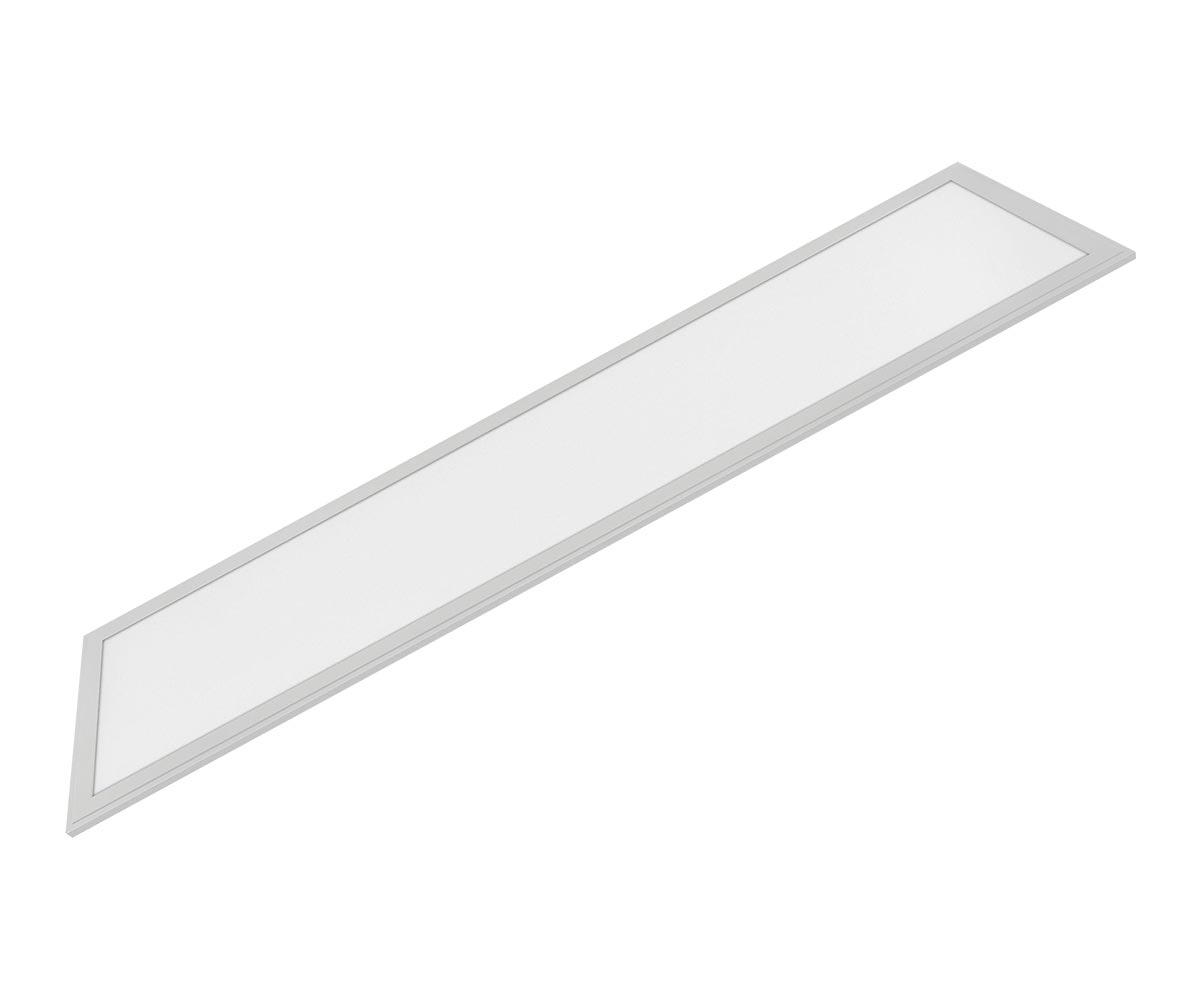

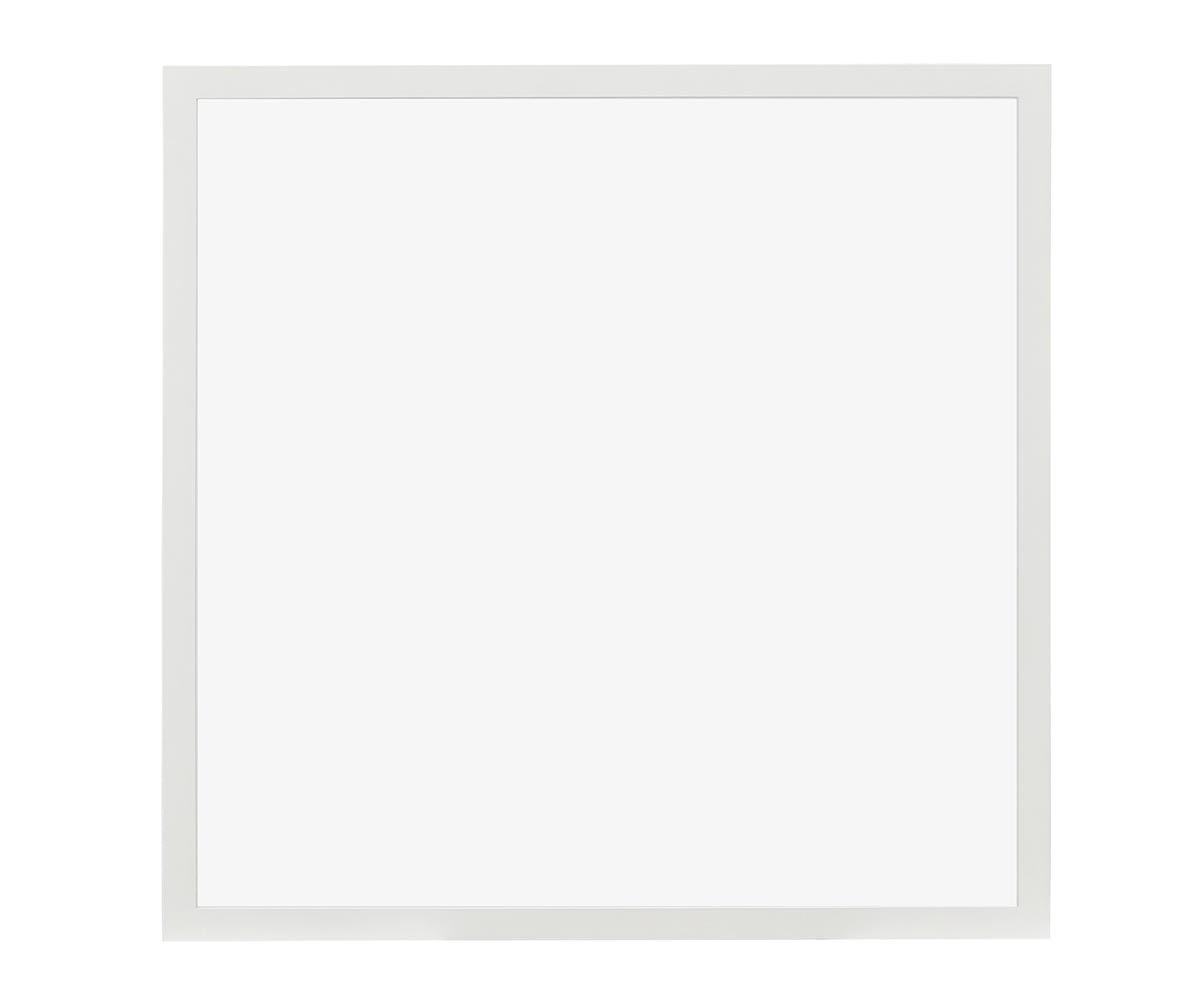

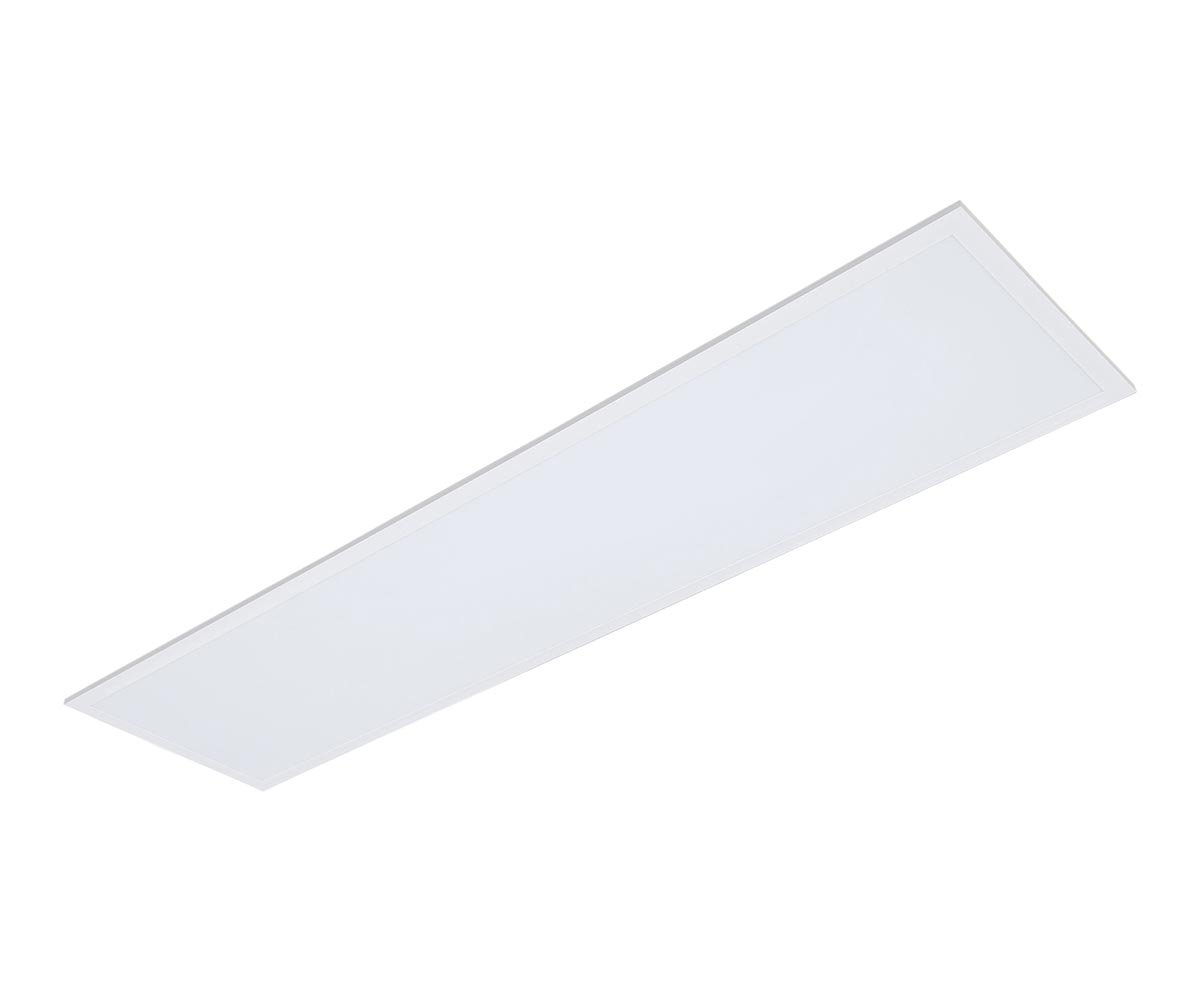

Panel Light Rialto
Italtesla’s Panel Light Rialto series is engineered for high-performance general lighting in production, logistics and technical offices. The luminaire integrates San’an mid-power LEDs and a Lifud (or BOKE, power-adjustable) driver to deliver either a fixed 34 W output or an 18–40 W tunable version. System efficacy reaches 120–160 lm/W, providing 4 080–6 400 lm while keeping energy demand and thermal load low.
Optical control is ensured by a Kerafyrm diffuser plate and wide-beam PMMA lens, achieving Unified Glare Rating < 19 and uniform 120° distribution without edge shadowing or yellow shift because no light-guide plate is used. Correlated colour temperature is selectable between 2 700 K and 6 500 K with a colour-rendering index > 80 for task-specific visual comfort.

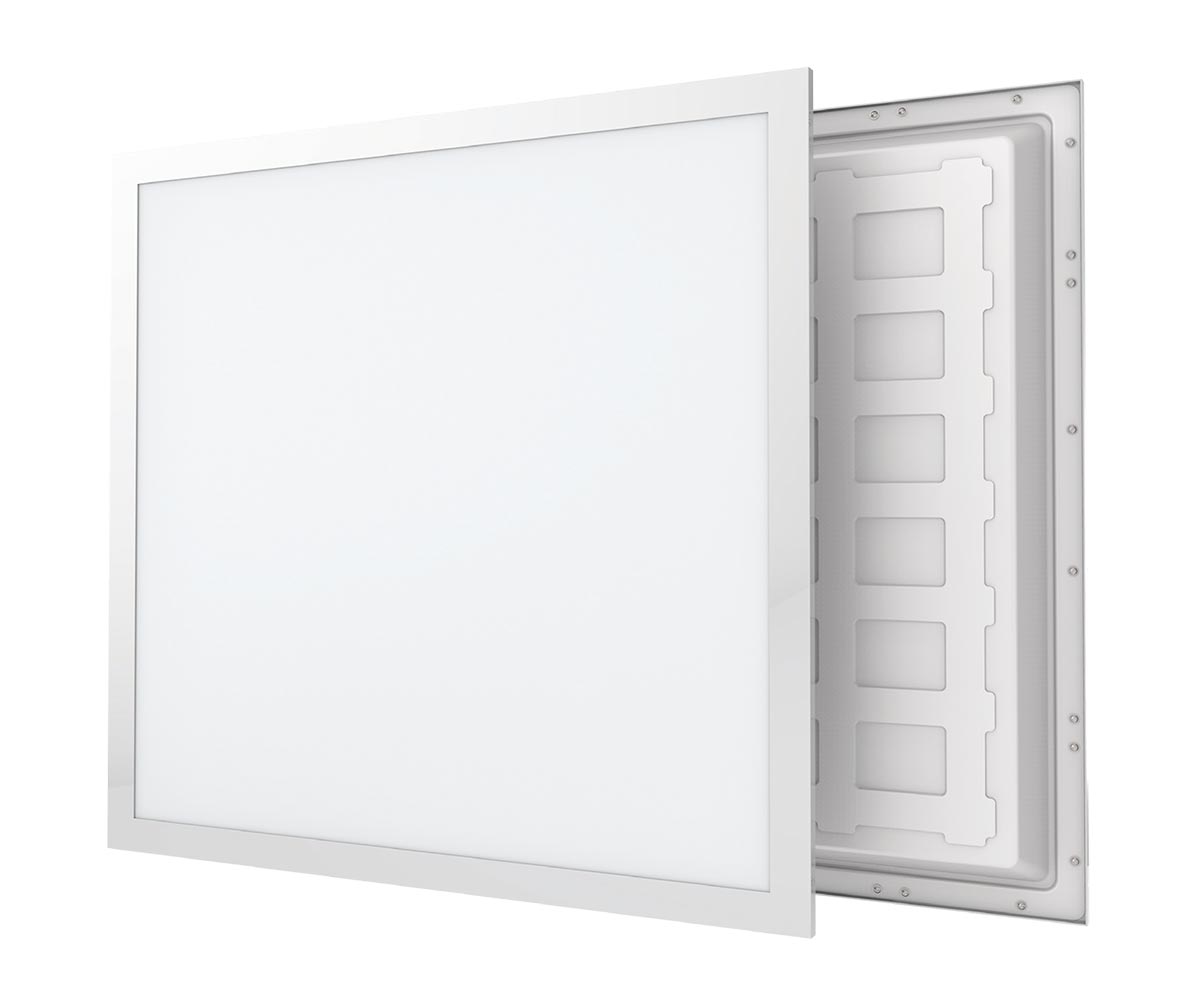

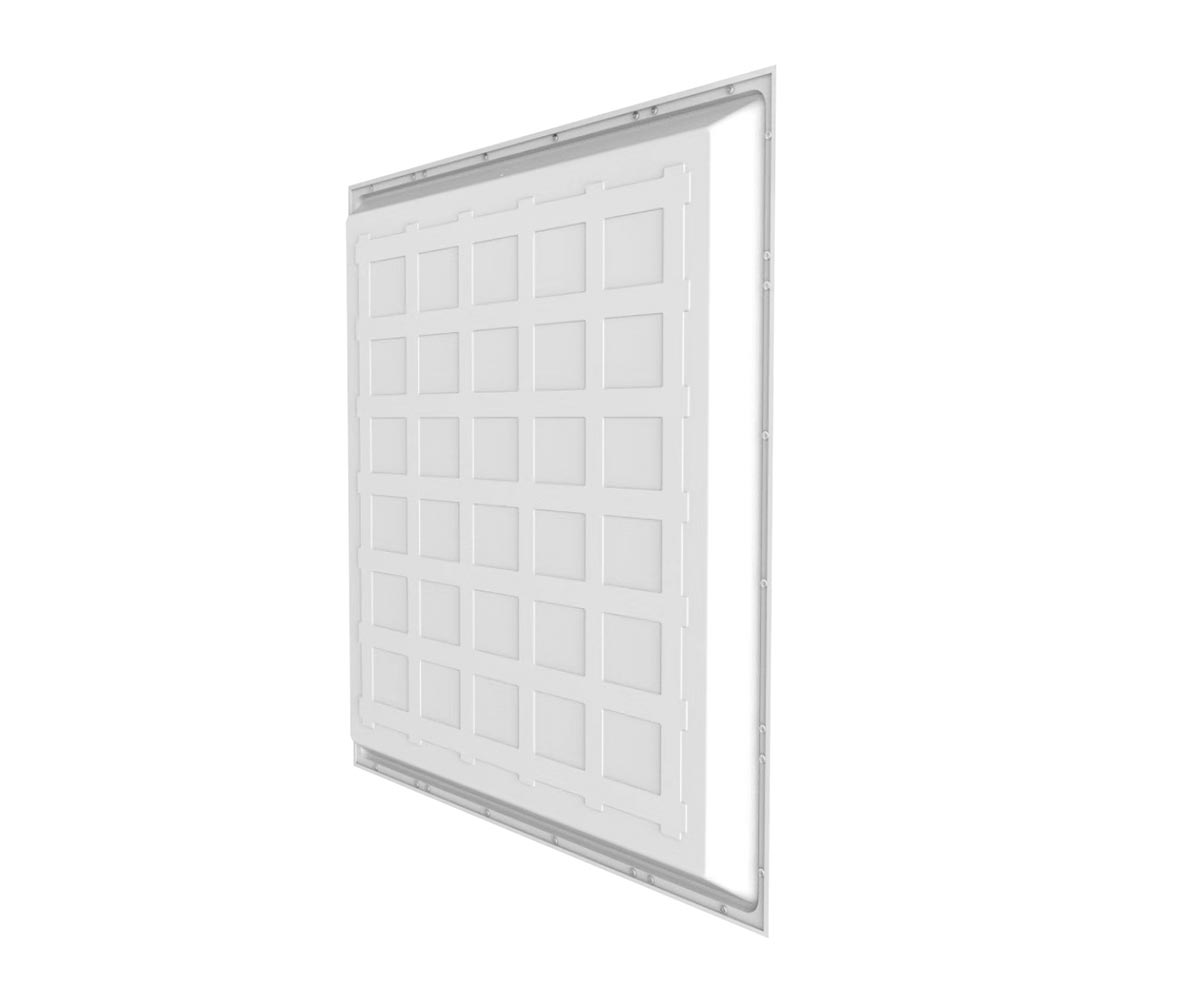

The mechanically robust housing couples an aluminium frame with an iron back plate for efficient heat dissipation and an ingress-protection rating of IP44. Male/female DC connectors simplify installation, while a screw-less surface-mount frame, DALI or push dimming, and output adjustment can be specified to match project infrastructure.
Rated for 50 000 h (L80) at −20 °C to +40 °C and a power factor > 0.95 on 220–240 V mains, Rialto provides a reliable, low-maintenance upgrade or new-build solution compliant with contemporary industrial lighting standards.
Certifications
CE
RoHS
